Pulsar offers a range of brackets to suit your application, designed to give you the easiest way to mount Pulsar ultrasonic and radar transducers. Pulsar's angled transducer brackets offer an easy-mounting solution for any of the dB series transducers and IMP level sensors, providing a stable method of mounting a transducer to a wall or hatch. The brackets are made from hot-dipped galvanized steel and come in a variety of configurations. |
Pulsar's hinged transducer bracket is an easy-mounting solution for any of the dB series transducers, providing a stable method of positioning a transducer above an application. The bracket is made from hot-dipped galvanized steel and is hinged to allow the transducer to be swiveled up for cleaning or to allow access. The transducer can then be returned to the original position with no need to recalibrate. |
A range of blind PVC flanges with central 1” BSP or NPT hole is available. These are for mounting transducers within a standpipe or tank using rear thread or dB3 front thread mounting. These are available in 2”, 3”, 4” and 6” ANSI or DIN 80, DIN 100, DIN 150 and DIN 200 patterns |

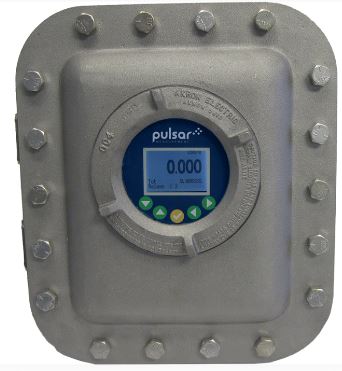

Pulsar CXJ8106 explosion-proof enclosure is for the Greyline product electronics housing. This enclosure is UL and CSA rated for hazardous locations. It comes with a viewing window, and the calibration keypad is magnetically activated through the glass window.Compliance: NEMA 4, 7, and 9. Certified by UL and CSA for use in Class I, Groups B, C, and D, Class II, Groups E, F, and G. Electrical connections by internal Terminals, undo flange bolts for access.DO NOT unscrew the viewing window. |

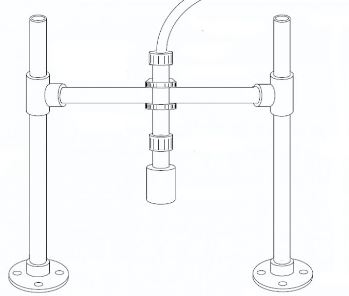

Pulsar SMS Sensor Mounting Stan is recommended for Greyline Open Chann Flow Meters such as the OCF 6.1. The elevation of the horizontal bar with the transducer is adjustable, and the bar is locked in place with set screws in the tee fittings. The stand is made from a 3/4" galvanized steel pipe to the customer's specified height. The width is as required to span the flume, weir, or stilling well. The width can be shortened in the field without rethreading. |
Pulsar VSJ stainless steel Pipe Mounting Bands for easy installation of Greyline submersible area-velocity transducers in round pipes Each Pipe Band includes: Band Adjustment Jack allowing ±0.5” (13 mm) adjustment from the nominal band size. VSJ6 and VSJ8 bands do not include adjustment jacks - they secure to pipe by spring tension. Stainless steel bracket for Sensor mounting and Pre-drilled for tie wraps (included) to secure Sensor cable.
|
Pulsar VSJ stainless steel half-pipe mounting bands for easy installation of Greyline submersible area-velocity transducers in large round pipes.Each half-pipe band assembly includes: Stainless Steel Band; Stainless steel bracket for sensor mounting; and Pre-drilled for tie wraps (included) to secure sensor cable.
|

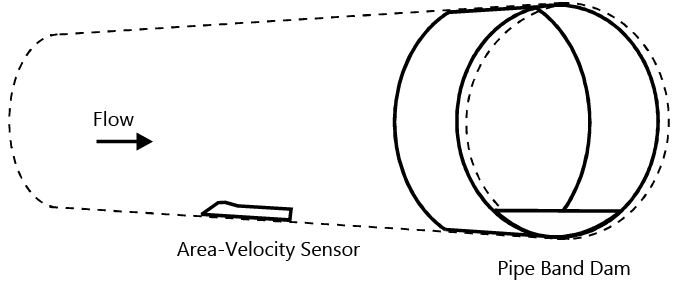

Pulsar optional VD stainless steel Pipe Dam Bands downstream from an area-velocity sensor installation to maintain low flow water level at 1” (25.4 mm) or higher as required for ultrasonic level measurement. For use with submersible sensors including AVFM 6.1, MantaRay, and Stingray.
|

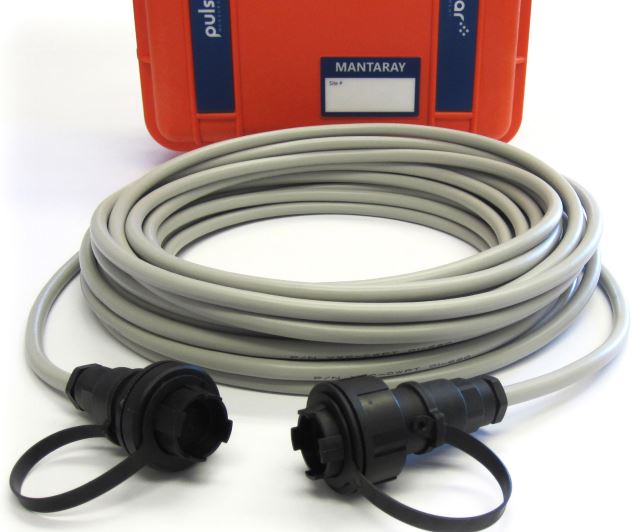

Pulsar extend sensor cables an additional 15 m (50 ft) with one PVXC5 sesnor cable extension connected between the meter enclosure and the sensor. The extension includes watertight, submersible connector plugs. For use with MantaRay and Singray products.
|
