We supply and provide application support for industrial process instrumentation product sensors and control devices. We are a manufacture's representative for a core group of well established and technologically superior industrial process instrumentation products.







Download our current linecard here. LINECARD





Fluid.iO is a  fast-growing industrial company that develops, manufactures and sells reliable sensor technology and electronics for measuring, testing and controlling gases and liquids. With our sensors and measuring instruments, we support our customers in fulfilling challenging measurement-, control- and automation tasks.






ViscoScope VA-100 ViscoScope VA-300 VS-D250 ViscoScope Transmitter

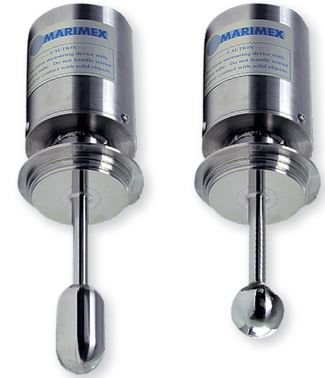

The ViscoScope® sensor probe is fully welded so that no moving parts come into contact with the fluid being measured. Electric coils excite the sensor at its resonant frequency to oscillate in low amplitude torsion. ViscoScope® sensor VA-100 is a maintenance-free process viscometer for precise, reproducible and reliable real time measurement of the dynamic viscosity of liquids. A Pt100 integrated in the sensor simultaneously measures the process temperature. The ViscoScope® system is factory calibrated with certified Newton calibration oils. The sensor is available in two probe versions. There is a choice of NPT threads and Special flange or hygienic fittings. Standardised or specially developed flow cells also allow installations in pipelines with small cross-sections.

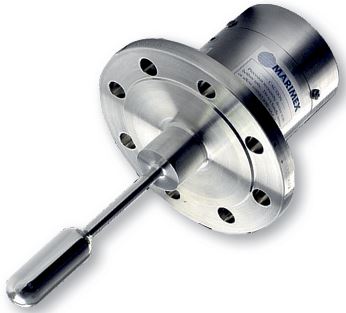

The ViscoScope® sensor probe is fully welded so that no moving parts come into contact with the fluid being measured. Electric coils excite the sensor at its resonant frequency to oscillate in low amplitude torsion. ViscoScope® sensor VA-300 is a maintenance-free process viscometer for precise, reproducible and reliable real-time measurement of the dynamic viscosity of liquids. A Pt100 integrated in the sensor simultaneously measures the process temperature. The ViscoScope® systems are factory calibrated with certified Newtonian calibration oils. The sensor is available with different probes and process connections. With this variety of sensor design, modifications to potential installation locations can often be avoided or adapted with little effort.

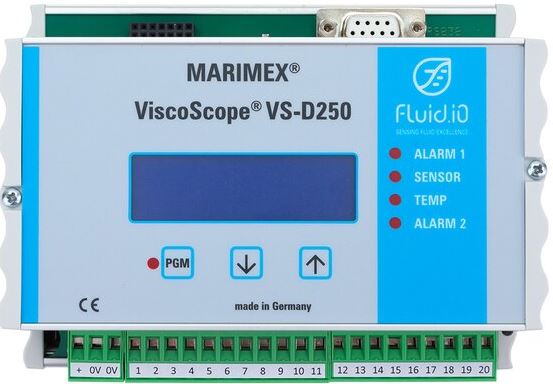

The ViscoScope® transmitters of the VS-4450 and VS-D250 series are compatible with all ViscoScope® sensors of the types VA-300 and VA-100 and their predecessor models. The transmitter excites the sensor and keeps the amplitude of the sensor‘s resonance frequency constant with fast PID control. The internal resolution is 16 bits, so that viscosity ranges over 4 decades are also excellently covered.Both transmitters are equipped with a configurable display. The transmission of the measurement data is done via analogue or serial interfaces in industry standard. The model VS-4450 is also available with 2 SPDT relays, which allow time-proportional control or alarms

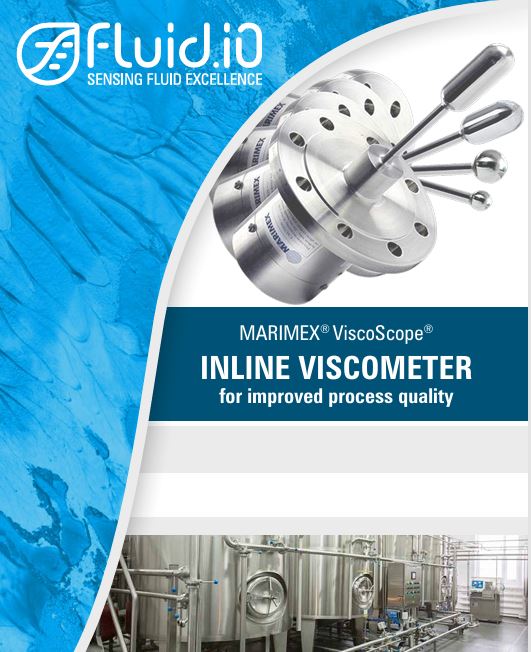

MARIMEX ViscoScope INLINE VISCOMETER PRODUCT BROCHURE

Fluid.iO Viscocity

ViscoScope® from Marimex® : Measure viscosity directly in your process precisely, reliably and in real time with our maintenance-free and durable viscosity measurement system.
